Introduction:
The CBN CD8000 is a stand-alone cable modem providing one ethernet connection.
Hardware Specifications:
DOCSIS 3.0 (32x8) and DOCSIS 3.1 (2x2)
Intel Puma 7 chipset
2 Gigabit Ethernet ports
Bridge-only modem (No routed/wifi capabilities)
Power Adapter: 12V - 1.5A
Web UI Address:
192.168.100.1
Note: Attempting to navigate to the modems web interface (192.168.100.1) will result in a time-out because the Hitron CODA-45's DHCP server is disabled by default. To open the web interface, we need to statically assign an IP address to the connecting device.
Static IP information for Hitron CODA-45
IP address: 192.168.100.10
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.100.1
Default User Credentials:
Username: cusadmin
Password: MAC address, all capitals
How to Factory Reset:
Pressing the physical reset button on the back of the modem for at least 5 seconds will initiate a factory reset.
Troubleshooting Information
Signal Lights
How to obtain diagnostic details:
Navigate to the user interface. (192.168.100.1)
Enter the administrative username and password in the Username and Password fields, then click Continue.
Click on the Modem tab.
The power levels can be found under the Downstream Overview and Upstream Overview headers.
Click on the Advanced
Click on the Event Log tab.
The cable modem logs can be found under the Description header.

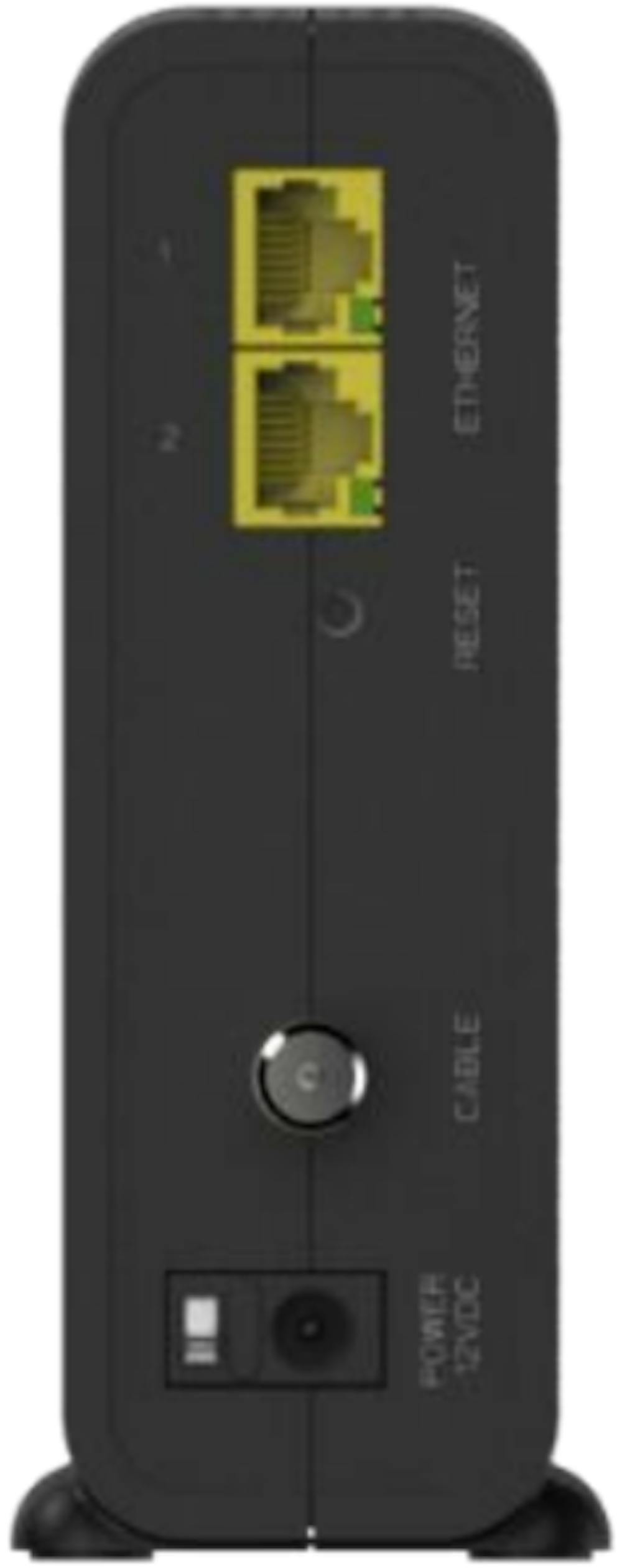

Gallery
