Introduction:
The Hitron CODA-45 is a stand-alone cable modem providing one ethernet connection.
Hardware Specifications:
DOCSIS 3.0 (32x8) and DOCSIS 3.1 (2x2)
Intel Puma 7 chipset
2 Gigabit Ethernet ports
Bridge-only modem (No routed/wifi capabilities)
Power Adapter: 12V - 2A
Web UI Address:
192.168.100.1
Note: Attempting to navigate to the modems web interface (192.168.100.1) will result in a time-out because the Hitron CODA-45's DHCP server is disabled by default. To open the web interface, we need to statically assign an IP address to the connecting device.
Static IP information for Hitron CODA-45
IP address: 192.168.100.10
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.100.1
How to Factory Reset:
Pressing the physical reset button on the back of the modem for at least 5 seconds will initiate a factory reset.
Troubleshooting Information

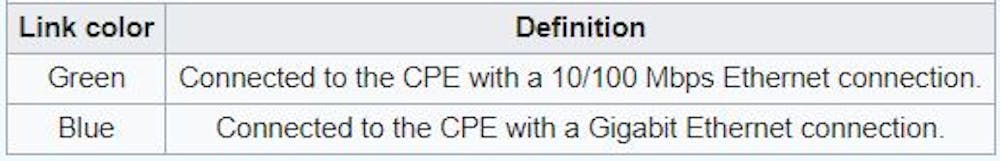

LAN Lights
Signal Lights
How to obtain diagnostic details:
Navigate to the user interface. (192.168.100.1)
Enter the administrative username and password in the Username and Password fields, then click Login.
Click on the Status tab.
Click on the DOCSIS Provisioning tab.
The cable modem statuses can be found under the DOCSIS Provisioning Status header.
Click on the DOCSIS WAN tab.
The power levels can be found under the Downstream Overview and Upstream Overview headers.
Click on the DOCSIS Event tab.
The cable modem logs can be found under the DOCSIS Logs header.
Further information can be found under the Overview, System Information and Wireless.

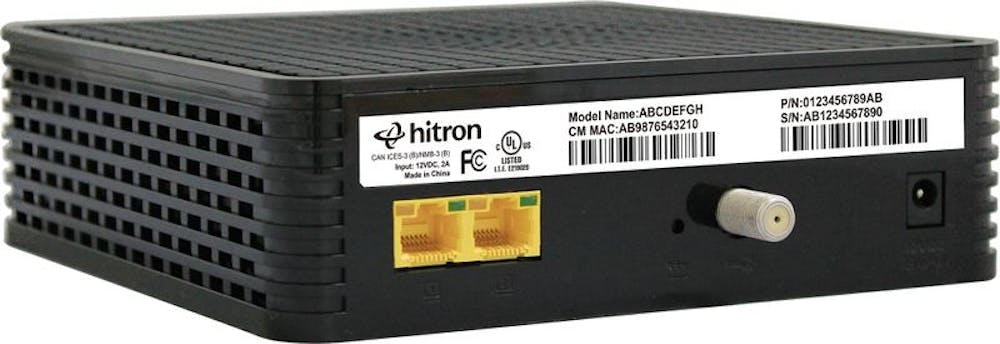

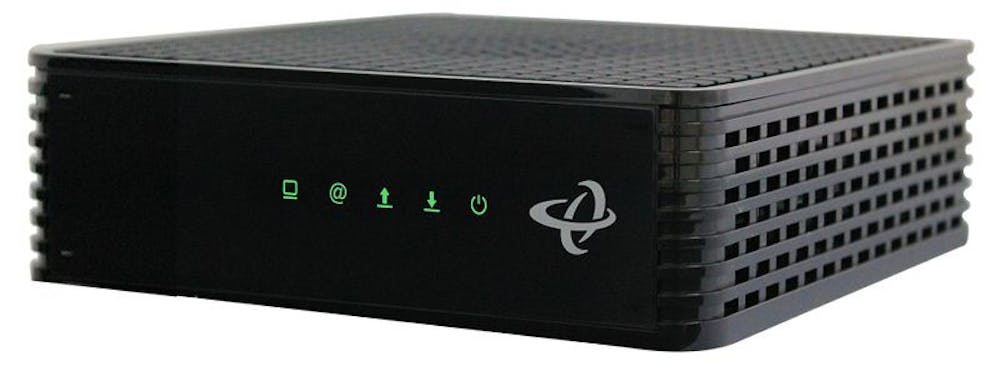

Gallery
